Brite MKIII

Our wearable and user-friendly fNIRS system with enhanced flexibility

  • Measures oxy-, deoxy- and total hemoglobin concentration changes from any cortical brain areas.

  • The multi-power gain control allows one to select, automatically or manually, the optimal optical settings for each brain area and participant.

  • Flexible inter-optode distances to measure short and long channels.

  • Integrated 3-axis accelerometer and 3-axis gyroscope to measure movement data.

  • Compatible with other techniques such as EEG and tDCS.

  • Easy analysis of your data with our superior analysis software, OxySoft.

  • Bluetooth connection or offline recording with a high sample rate.

  • Available in dual mode to achieve up to 54 channels.

How to describe the new Brite?

Wearable & flexible multi-channel fNIRS device for brain oxygenation measurement.

It works with multi-wavelength LEDs, giving you continuous and real-time feedback in our data analysis software that is delivered with the system.

The Brite MKIII comes with a multi-power gain control. This feature enables users to measure at 4 different power levels and auto-power settings per channel, enabling optimal data quality across a wide range of ages, skin color, hair type, and cortical optode distances.

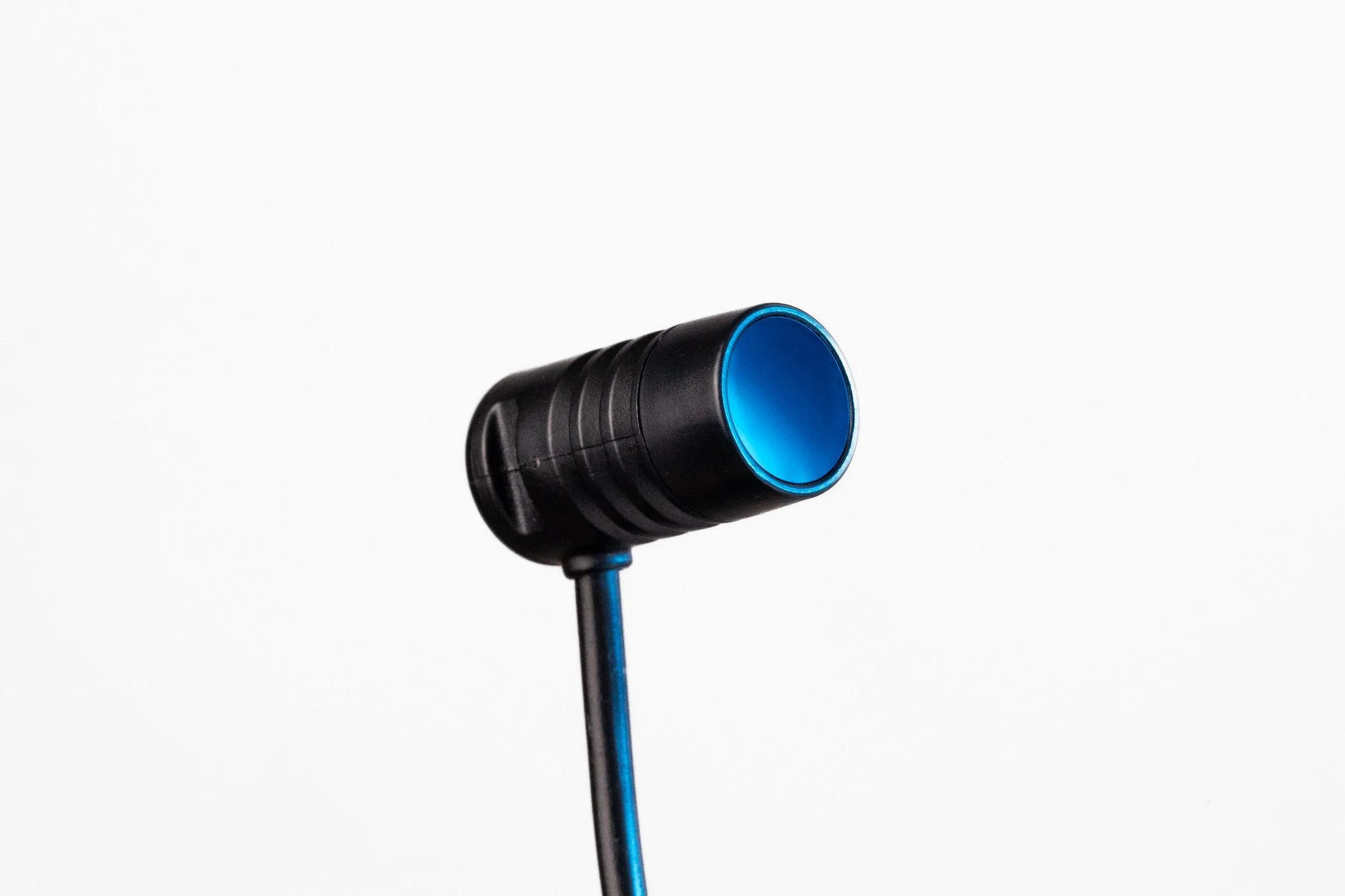

With the Brite MKIII, we have incorporated flexible interoptode distances. Whether you want to measure shallow or deep, any distance from 10 mm up to 55 mm is now possible.

The flexible optode template in OxySoft enables users to select specific optode templates (up to 27 channels) applicable to any cortical area and according to their preferred layout. This makes it possible to have a unique configuration for any custom study.

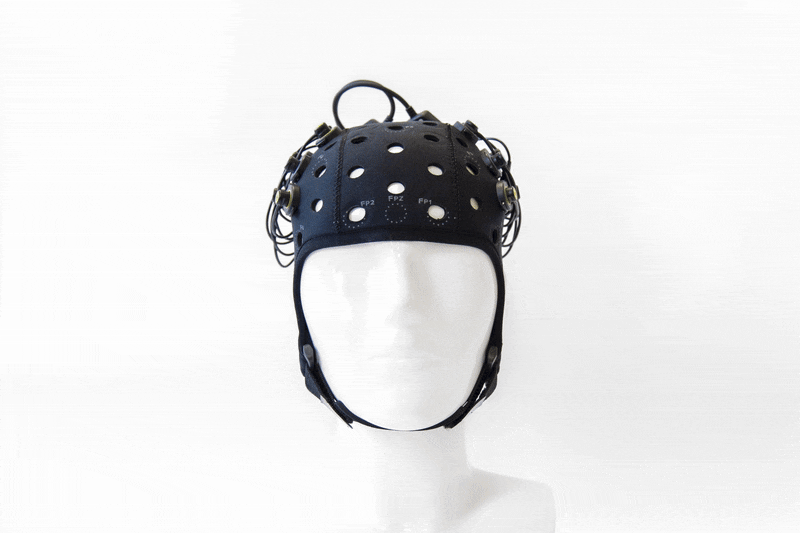

The Brite MKIII weighs only 300 grams in total! This portability in combination with the soft neoprene headcap makes monitoring brain oxygenation of elderly, children, and vulnerable patients comfortable and easy.

The new Brite is WHOA!

Wearable…anywhere & for everyone!

The multi-power gain control of the Brite MKIII can adapt the optical power when needed. This improves the recording of brain activity across a wide range of ages, skin colors, scalp areas, hair types, and cortical optode distances.

Highly flexible

The Brite MKIII offers flexible inter-optode distances and a flexible optode template. These features make it possible to have a unique configuration for any study.

Optimized

With the optimized ambient light correction, the Brite MKIII can be used in any environment. This includes the outdoors, offices, labs, and hospitals

Accurate

The Brite MKIII offers improved data accuracy with reduced system noise. Additionally, the dynamic range has been improved, resulting in an increased system sensitivity.

AS FLEXIBLE AS YOU ARE

🟡

AS FLEXIBLE AS YOU ARE 🟡

BRITE APPLICATIONS

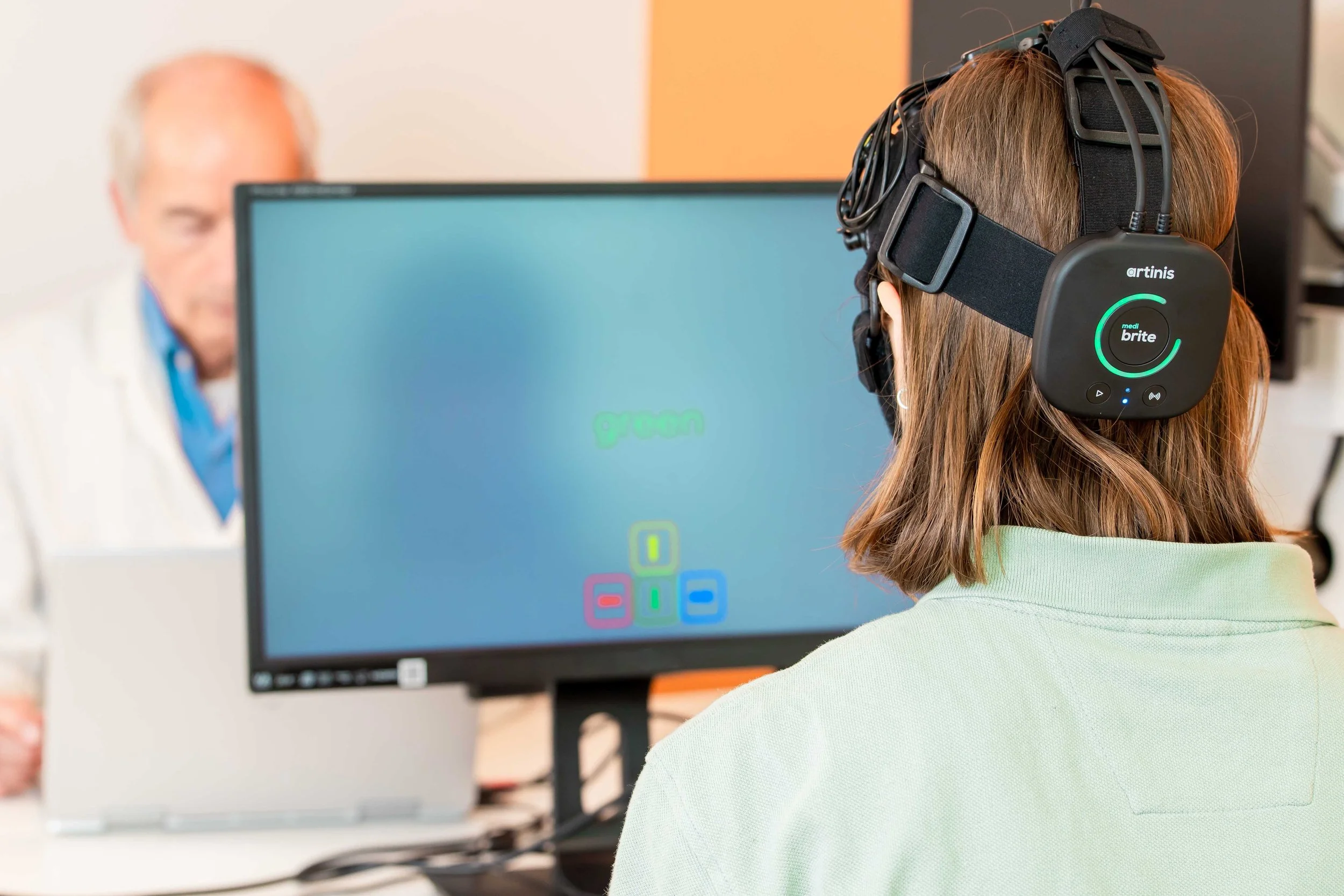

The Brite can be used to measure oxygenation anywhere in the brain. Subjects are even able to perform physical activities, like walking and cycling, not to mention that it weighs only 300 grams in total! This wearability makes monitoring the brain oxygenation of elderly, children, and vulnerable patients comfortable and easy. The device is connected with a long-ranged Bluetooth antenna to the laptop and incorporated with an integrated 9-axis movement sensor to measure head movements.

Brite specifications

fNIRS made easy

The NIRS technique

Optical oximetry and near-infrared spectroscopy (NIRS) in particular is a tool for non-invasively assessing the oxygenation status and hemodynamics of various organs, e.g., muscle and brain. They rely on mainly two characteristics of human tissue. Firstly, the relative transparency of tissue for light in the NIR range, and secondly the oxygenation-dependent light absorbance of hemoglobin.

Read more >

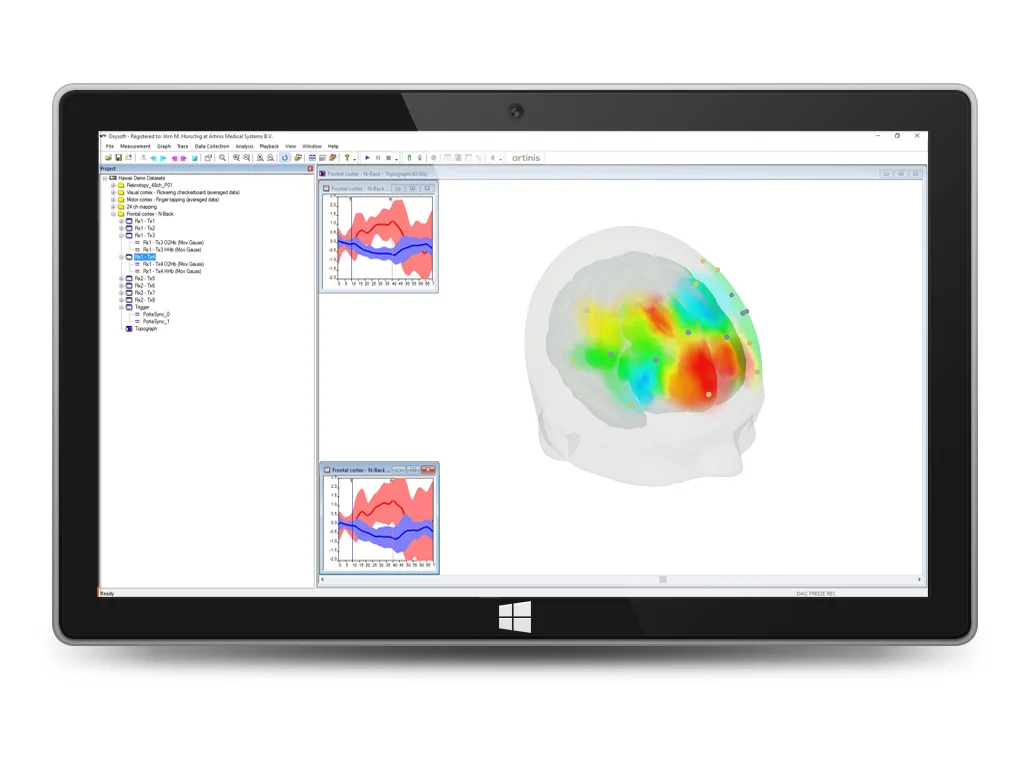

Real-time processing of fNIRS data in 3D

artinis brite software display.jpg
SOFTWARE

All of our devices are bundled with OxySoft. OxySoft is our dedicated software application used to collect, store, view, and analyze all necessary data. This user-friendly software is developed by Artinis and is highly customizable to individual requirements. OxySoft provides in real-time the calculation of oxy-, deoxy-, total hemoglobin, and TSI.

One or dual

Expand the measurement area

Combining two Brite MKIII systems can easily be done because OxySoft can connect multiple devices simultaneously. Therefore, the data is perfectly synchronized and combined within one data stream.

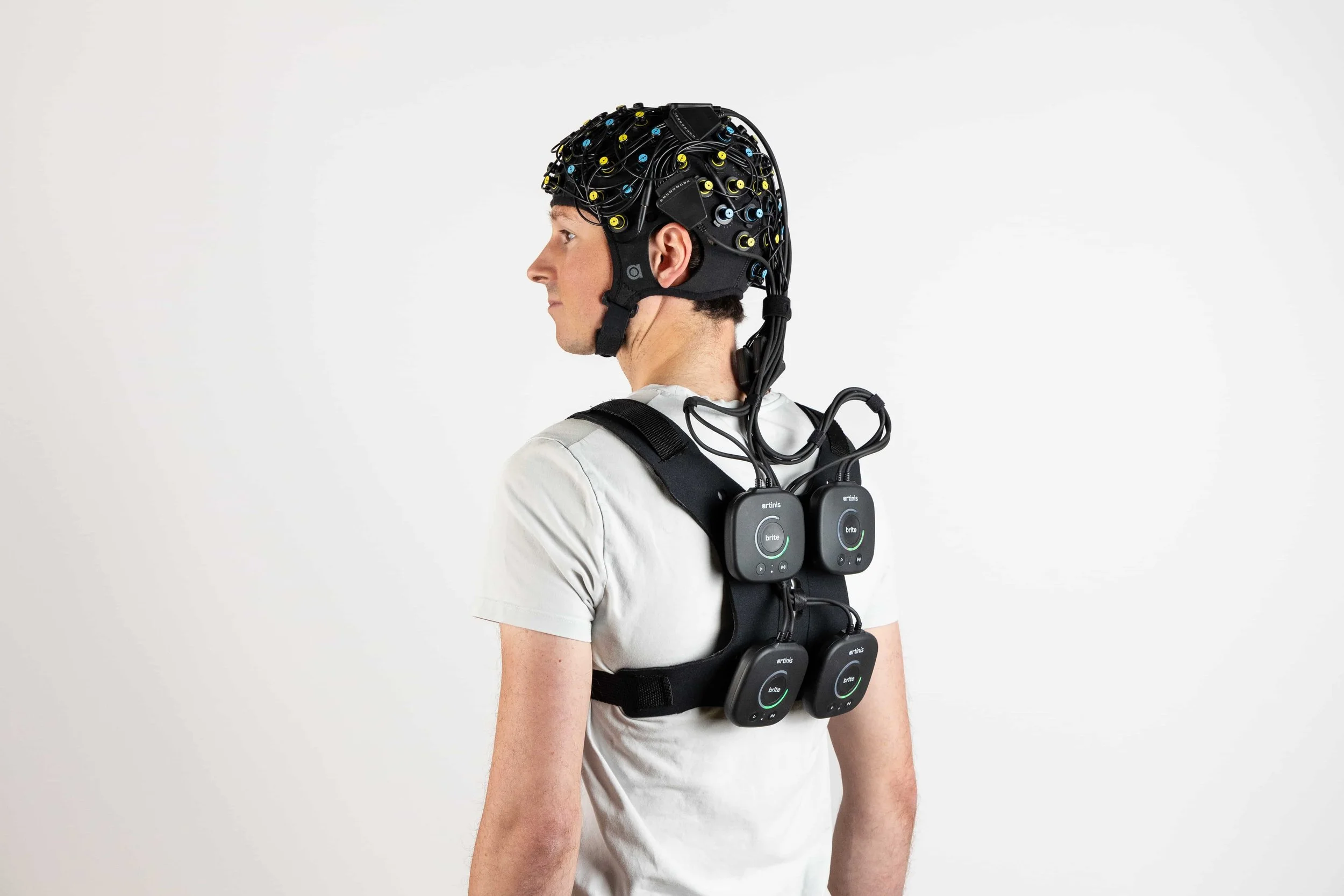

Up to 54 channels

Using the Dual Brite on a research participant creates up to 54 channels. This makes it perfect for measuring multiple brain areas at the same time.

Hyperscanning (monitoring multiple subjects at the same time) is also possible. This makes it perfect for human interaction measurements.

Supporting features

SHORT SEPARATION CHANNELS

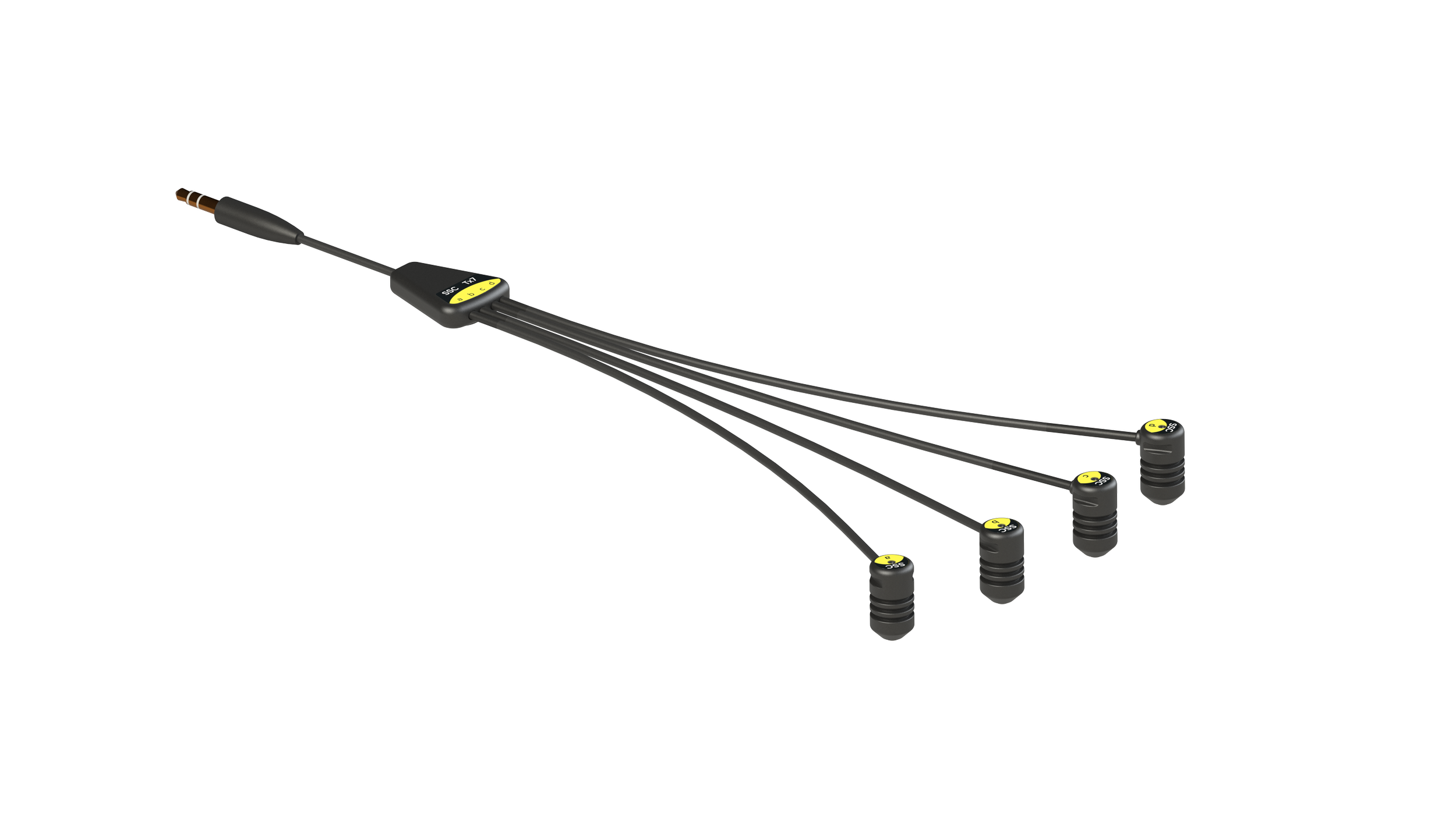

The Multipower gain control of the Brite allows to easily switch a channel from a standard distance (i.e. 30 mm) to a shorter one (i.e. 10 mm). Interested in having more short separation channels (SSC) without sacrificing many standard channels? Then upgrade to the Short separation channel splitter, which enables you to have 4 additional SSC’s!

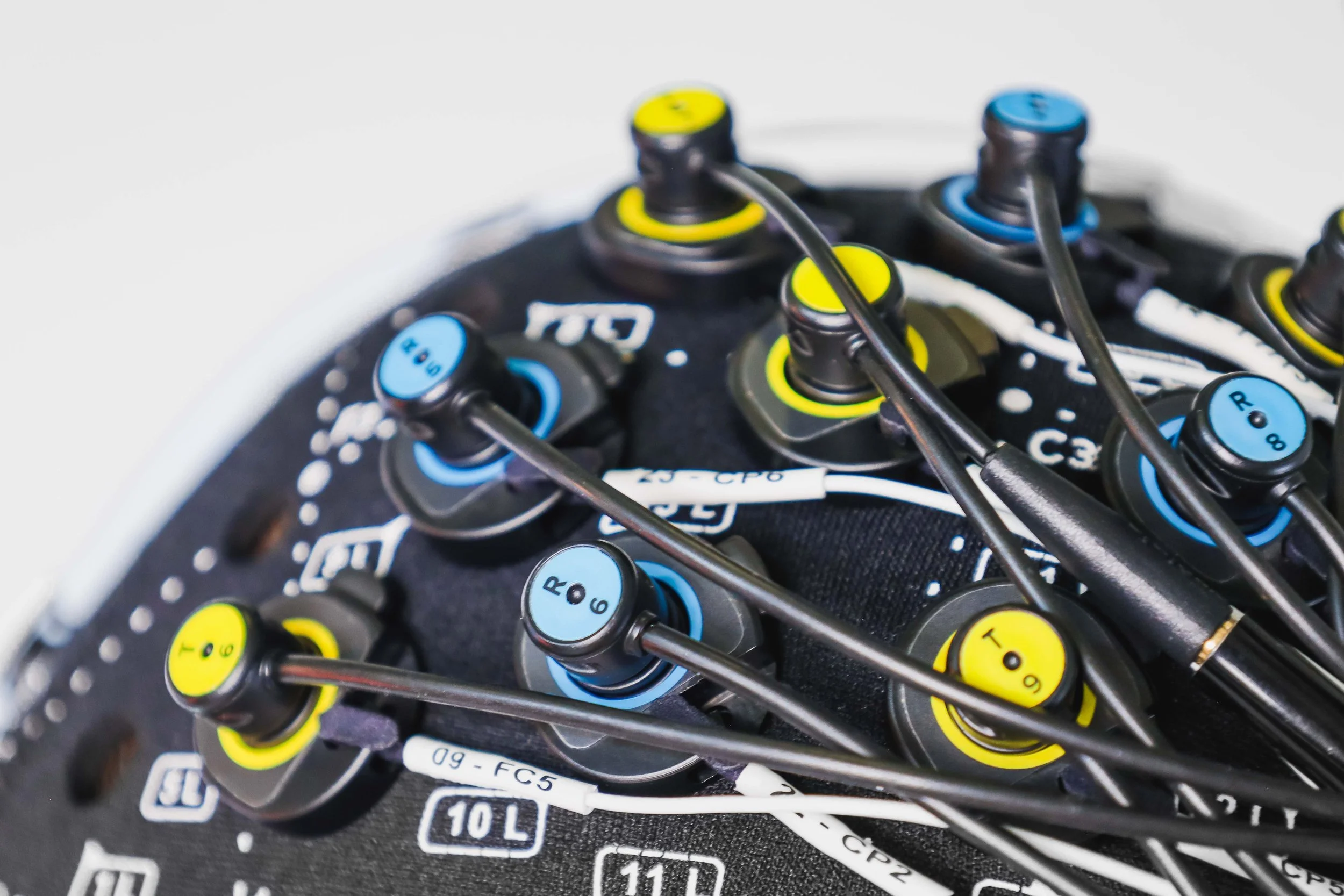

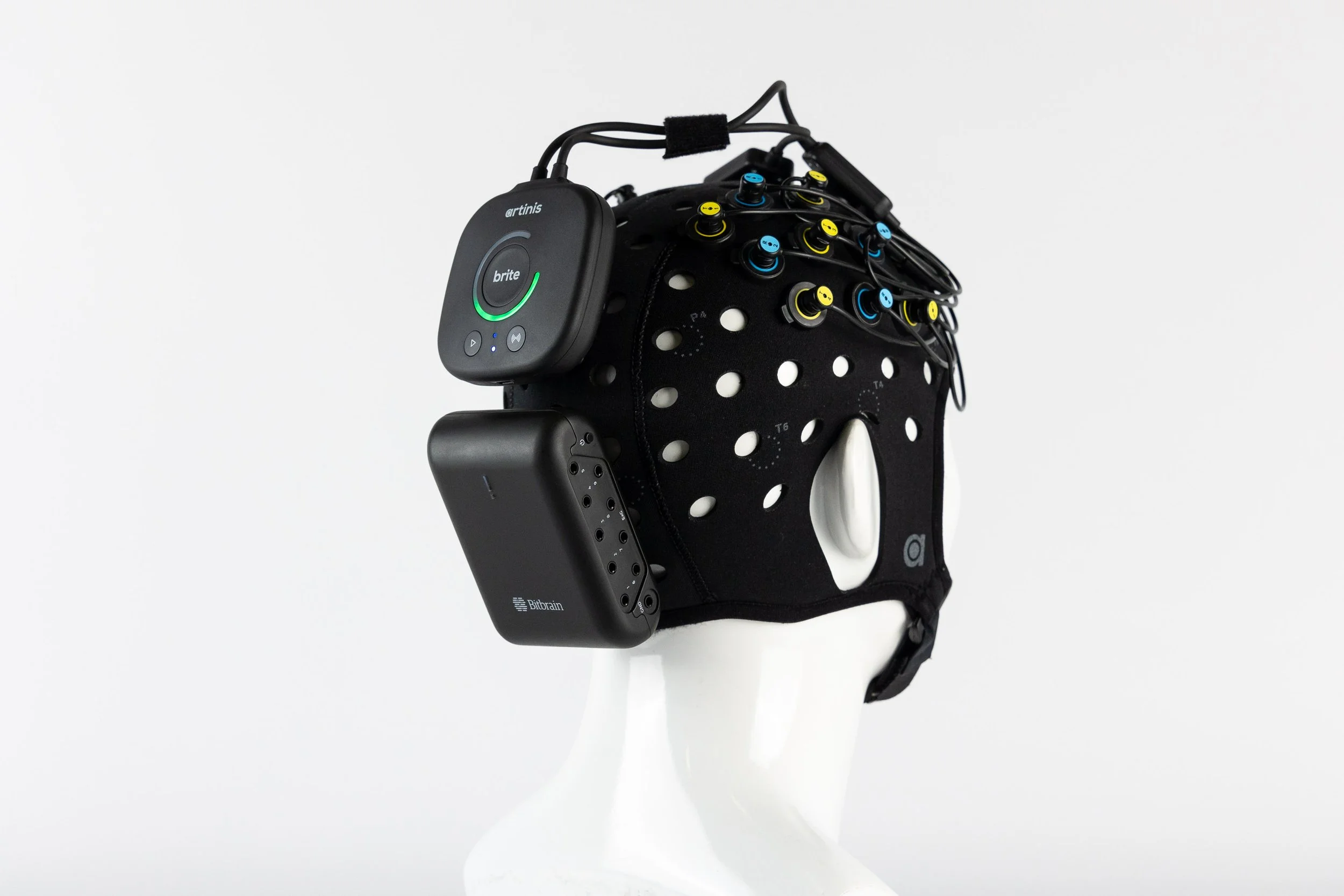

EEG & TES COMPATIBILITY

You can combine transcranial electrical stimulation (tES: tDCS, tACS, tRNS) & electroencephalography (EEG) with NIRS in one single headcap. Such a combination allows clinicians and researchers to measure both cortical electrophysiological (EEG) and hemodynamic activity (fNIRS) before, during, and after transcranial electrical stimulation in real-world settings.

3D DIGITIZATION & SYNCHRONIZATION

Polhemus Viper and Patriot devices are well-known in the neuroscience world for precise digitization of sensor positions. In combination with the Brite, you can measure the exact locations of the optodes on your participant’s head within OxySoft. With our OxySoft 3D extension, you will benefit from a purely integrated solution, which guides you through the digitization process.

Brite research package

Designed, produced, and manufactured in The Netherlands, EU.

WHAT'S IN THE BOX

  • Brite or Dual Brite incl. headcaps

  • OxySoft, our proprietary data analysis software

  • Laptop with pre-installed software

  • OxySoft license key

  • USB Bluetooth dongle

  • Universal micro-USB cable

  • Battery charger

  • User Manual & Quick Start guide

  • Support in setting up your research

Felipe Mattioni Maturana, University hospital of Tübingen, Germany.

“I am a big fan of Artinis!

After many bad experiences with customer services from different companies during my career, I highly value companies that do not just care about selling you stuff, but also provide high-quality after-sale support. Artinis provides by far the best after-sale support I have ever experienced!

So, thank you for all the hard work!”

Artinis NIRS products are intended to be used for research applications only. Our products are not sold as Medical Device as defined in Medical Device Regulation (EU) 2017/745. Our products are not designed or intended to be used for the diagnosis or treatment of disease.
